Product Overview

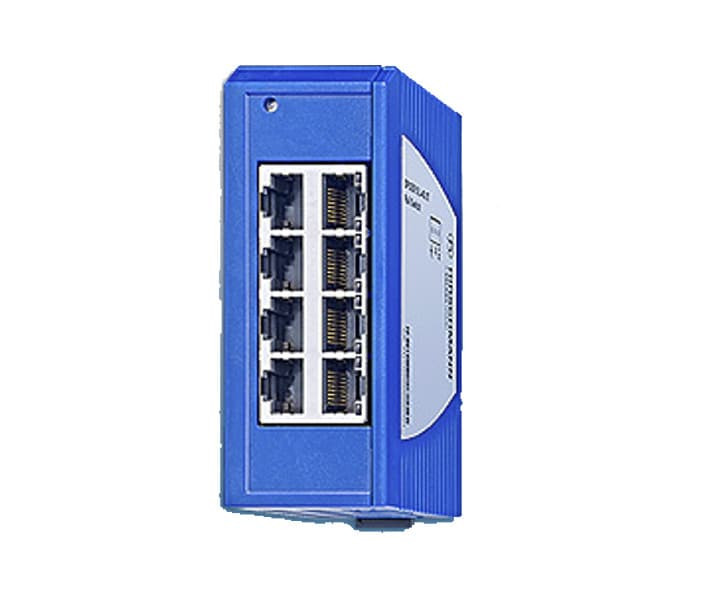

The Hirschmann SPIDER III SSL20-8TX unmanaged rail switch (model SPIDER-SL-20-08T1999999SY9HHHH) delivers eight 10/100 Base-TX RJ45 ports in a slim, fan-less IP30 metal housing just 38 × 102 × 79 mm. Drawing only 1.5 W from a 9.6 – 32 V DC supply and rated for 0 °C to +60 °C, it provides instant, plug-and-play Ethernet expansion for space-constrained industrial panels.
SSL20-8TX Rail Switch 942132002
$189.84
Features
- Eight copper ports: 8 × 10/100 Base-TX RJ45 with auto-negotiation, auto-crossing and auto-polarity.
- Zero-config switching: Unmanaged, store-and-forward architecture enables immediate commissioning.
- Energy-efficient: Typical power consumption ≤ 1.5 W (63 mA @ 24 V DC) keeps heat and operating costs low.
- Compact DIN-rail design: Narrow 38 mm width fits crowded control cabinets; fan-less IP30 metal enclosure.
- Front-panel LEDs: Power, link/activity and data-rate indicators speed on-site diagnostics.
- Industrial durability: Operates 0 °C – 60 °C; tested to 15 g shock and IEC 60068-2-6 vibration.
- Wide-range DC input: Accepts standard 12/24 V DC control voltages (9.6 – 32 V DC).
- UL-certified safety: Meets UL 61010-1/-2-201 for industrial control equipment.
