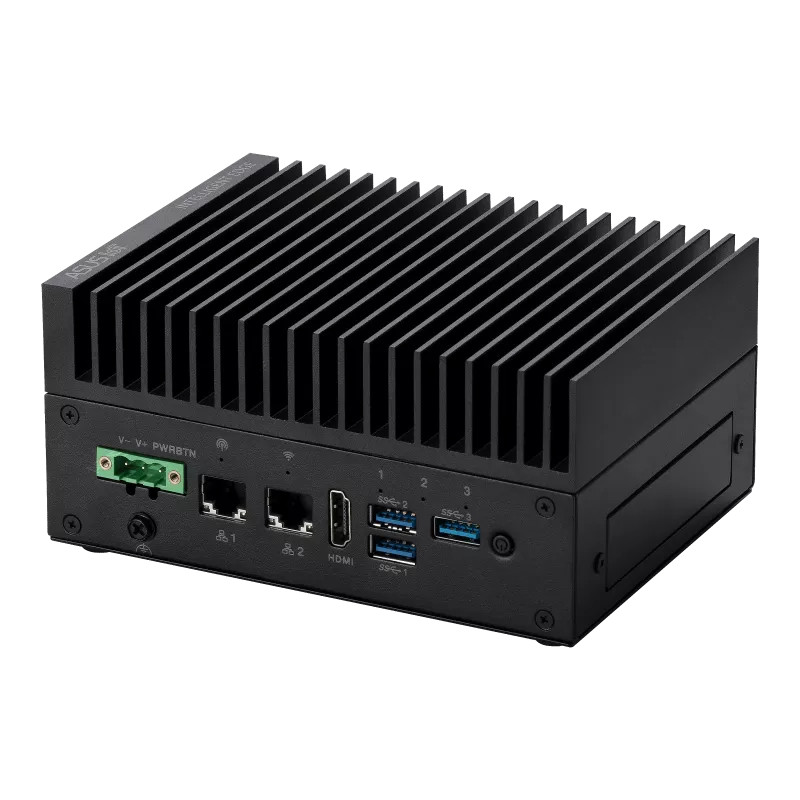

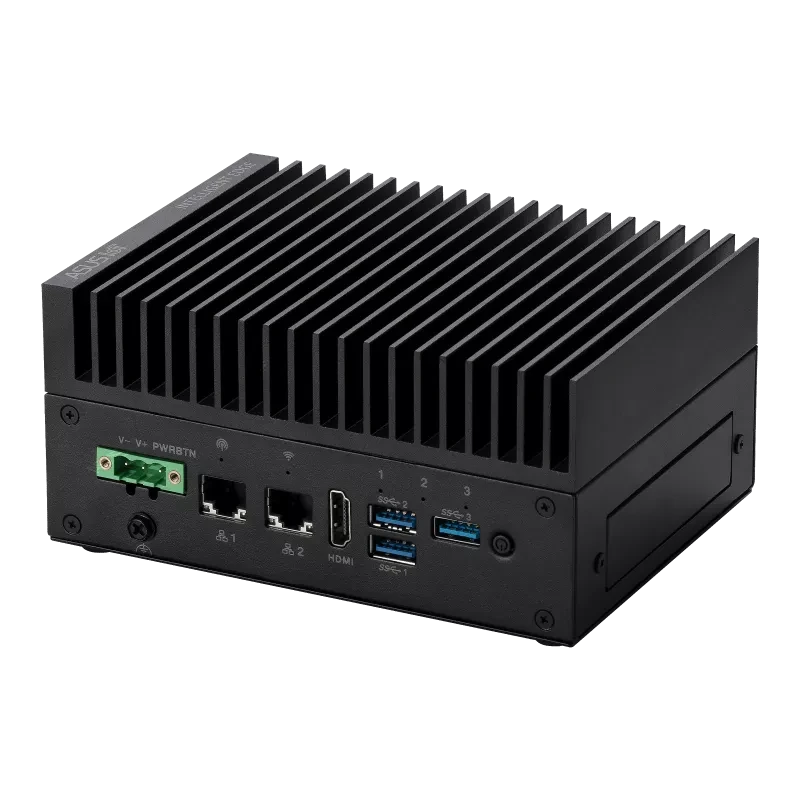

PE1100N / Orin NX 16G/128G/WiFi/BT/US

ASUS IoT PE1100N is an ultra-compact, ultra-efficient computer for AI inferencing at the edge, and based on the powerful NVIDIA® Jetson Orin™ platform. It features fanless design, rich industrial connectivity and supports a wide range of power inputs and operating temperatures for maximum versatility and durability — making it ideal for diverse, scalable edge AI applications in smart city, transportation, manufacturing and more — including traffic analysis, people-tracking, counting and surveillance. Also, PE1100N's compact size and anti-vibration are especially good for smart manufacturing solutions, such as automated guided vehicle (AGVs), autonomous mobile robots (AMRs), AI-powered automated optical inspection (AOI) and robotics applications.

Feature highlights

Powerful AI performance with high GPU efficiency

Powered by NVIDIA® Jetson Orin, the world's leading platform for AI at the edge, PE1100N provides up to 100 tera operations per second (TOPS) energy-efficient computing for deep learning and computer-vision tasks — realizing up to 18X-better frames-per-watt efficiency than traditional x86-based platforms. Minimal coding is required to create and run AI and machine-learning models, empowering the Jetson platform to be easily and seamlessly adopted. The NVIDIA Isaac™ Robot Operating System (ROS) SDK is also supported by PE1100N, enabling the development of ROS 2 projects.

*Test result from NVIDIA®. *PC configuration: GTX 1070 150W, Core i7 65W, Total 215W (reference)

SWaP-optimized design for harsh environments

PE1100N’s ultra-compact, 1.25-liter volume approximates a mere 3% of the size of a standard ATX system, so it is ready for diverse applications and solutions. Coupled with this is an exclusive fanless design built around an extruded-aluminum chassis for efficient, silent cooling — enabling stable, reliable operation across a wide -20 to 50°C wide temperature range. PE1100N’s strong, resilient design is fit for challenging industrial environments.

High expandability and connectivity for IoT applications

PE1100N is equipped with an extensive collection of I/O ports for diverse industrial purposes, including LAN, DIO, COM, USB 3.2 and Type-A. Selected models also feature CAN bus and a Micro-USB debug port for easy system maintenance. It also boasts onboard WiFi and Bluetooth, and has M.2 B key for a 4G/5G cellular module — including support for dual SIM slots. GPS is also built in for pinpoint device-tracking, as well as the ability to record location data, making it an ideal choice for smart-transportation solutions.
