Hirschmann

SPIDER-PL-20-24T1Z6Z699TY9HHHV Rail Switch

__feature_benefit

High port density: 16 × 10/100BASE-TX RJ45 ports with auto-negotiation, auto-crossing, and auto-polarity.

__feature_benefit

Plug-and-play: Unmanaged store-and-forward switching—no configuration required.

__feature_benefit

Rugged operation: –40 °C … +70 °C fan-less performance in an IP40 metal enclosure.

__feature_benefit

Redundant power: Dual 12/24/48 V DC (9.6 – 60 V) or 24 V AC (19.2 – 28.8 V) inputs for high availability.

__feature_benefit

Compact DIN-rail mount: 61 × 163.5 × 114.7 mm footprint fits space-constrained panels.

__feature_benefit

Diagnostics LEDs: Per-port link/activity, data-rate, and power indicators speed troubleshooting.

__feature_benefit

Mechanical resilience: Shock-tested to 15 g (11 ms) and vibration-tested to IEC 60068-2-6.

__feature_benefit

Exceptional reliability: MTBF > 3.5 million h (Telcordia SR-332, 25 °C).

SPIDER-PL-20-16T1999999TY9HHHV Rail Switch

__feature_benefit

High port density: 16 × 10/100BASE-TX RJ45 ports with auto-negotiation, auto-crossing, and auto-polarity.

__feature_benefit

Plug-and-play: Unmanaged store-and-forward switching—no configuration required.

__feature_benefit

Rugged operation: –40 °C … +70 °C fan-less performance in an IP40 metal enclosure.

__feature_benefit

Redundant power: Dual 12/24/48 V DC (9.6 – 60 V) or 24 V AC (19.2 – 28.8 V) inputs for high availability.

__feature_benefit

Compact DIN-rail mount: 61 × 163.5 × 114.7 mm footprint fits space-constrained panels.

__feature_benefit

Diagnostics LEDs: Per-port link/activity, data-rate, and power indicators speed troubleshooting.

__feature_benefit

Mechanical resilience: Shock-tested to 15 g (11 ms) and vibration-tested to IEC 60068-2-6.

__feature_benefit

Exceptional reliability: MTBF > 3.5 million h (Telcordia SR-332, 25 °C).

RS30-0802O6O6SDAE Rail Switch

__feature_benefit

Port mix: 2 × Gigabit Ethernet SFP uplinks + 8 × 10/100 BASE-TX RJ45 ports with auto-negotiation and auto-crossing.

__feature_benefit

Layer 2-Enhanced switching: IEEE 802.1Q VLANs, four-queue QoS, IGMP Snooping/Querier, broadcast limiter, and fast aging.

__feature_benefit

Industrial redundancy: HIPER-Ring (< 0.3 s), MRP, and Rapid STP for sub-second network recovery.

__feature_benefit

Comprehensive management: Web UI, CLI, SNMP v1/v2/v3, HiVision, plus USB ACA21 for zero-touch device replacement.

__feature_benefit

Diagnostics toolkit: LEDs, log file, LLDP topology discovery, RMON statistics, port mirroring, and SFP optical diagnostics.

__feature_benefit

Cyber-security: IP/MAC port security and SNMPv3 authentication with configuration watermarking and automatic rollback.

__feature_benefit

Flexible power: Dual 12/24/48 V DC or 24 V AC inputs with redundant feeds (power dissipation < 26 BTU/h).

__feature_benefit

Rugged build: Metal IP20 housing, 74 × 131 × 111 mm, 0 °C … 60 °C fan-less operation; shock- and vibration-tested.

RS20-2400M2M2SDAE Rail Switch

__feature_benefit

High-density connectivity: 2 × 100 BASE-FX MM-SC uplinks + 22 × 10/100 BASE-TX RJ45 ports with auto-negotiation and auto-crossing.

__feature_benefit

Layer 2-Enhanced switching: IEEE 802.1Q VLANs, four-queue QoS, IGMP Snooping/Querier, broadcast limiter and fast aging.

__feature_benefit

Industrial redundancy: HIPER-Ring (< 0.3 s), MRP and Rapid STP for sub-second network recovery.

__feature_benefit

Versatile management: Web UI, CLI, SNMP v1/v2/v3, HiVision and USB ACA21 for zero-touch device replacement.

__feature_benefit

Comprehensive diagnostics: LEDs, log files, LLDP topology discovery, RMON statistics, port mirroring and SFP optical diagnostics.

__feature_benefit

Cyber-security: IP/MAC port security and SNMPv3 authentication with configuration watermarking and automatic rollback.

__feature_benefit

Robust power design: Dual 12/24/48 V DC or 24 V AC inputs with redundant feeds (≈ 54 BTU/h dissipation).

__feature_benefit

Rugged build: Metal IP20 housing, 110 × 131 × 111 mm, fan-less 0 °C … 60 °C operation; shock- and vibration-tested.

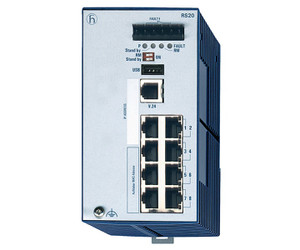

RS20-0800T1T1SDAE Rail Switch

__feature_benefit

Mixed media ports: 2 × 10/100 BASE-TX RJ45 uplinks + 6 × 10/100 BASE-TX RJ45 user ports, all auto-negotiating and auto-crossing.

__feature_benefit

Layer 2-Enhanced switching: IEEE 802.1Q VLANs, 4-queue QoS, IGMP Snooping/Querier, and broadcast limiter.

__feature_benefit

Industrial redundancy: HIPER-Ring (< 0.3 s), MRP, and Rapid STP for sub-second failover.

__feature_benefit

Versatile management: Web UI, CLI, SNMP v1/v2/v3, HiVision, and USB ACA21 for zero-touch replacement.

__feature_benefit

Comprehensive diagnostics: LEDs, log files, LLDP, RMON, port mirroring, and SFP optical diagnostics.

__feature_benefit

Cyber-security: IP/MAC port security and SNMPv3 authentication with configuration watermarking and rollback.

__feature_benefit

Flexible power: Dual 12/24/48 V DC or 24 V AC inputs with redundant feeds (< 18 BTU/h power dissipation).

__feature_benefit

Rugged build: Metal IP20 housing, 74 × 131 × 111 mm, 0 °C … 60 °C fan-less operation; shock- and vibration-tested.

RS20-0800S2S2SDAE Rail Switch

__feature_benefit

Mixed media ports: 2 × 100 BASE-FX SM-SC fiber uplinks + 6 × 10/100 BASE-TX copper with auto-negotiation and auto-crossing.

__feature_benefit

Layer 2-Enhanced switching: IEEE 802.1Q VLANs, four-queue QoS, IGMP Snooping/Querier, and broadcast limiter.

__feature_benefit

Industrial redundancy: HIPER-Ring (< 0.3 s), MRP, and Rapid STP for sub-second failover.

__feature_benefit

Comprehensive management: Web UI, CLI, SNMP v1/v2/v3, HiVision, plus USB ACA21 for zero-touch device replacement.

__feature_benefit

Diagnostics toolbox: LEDs, log files, LLDP topology discovery, RMON statistics, port mirroring, and SFP optical diagnostics.

__feature_benefit

Cyber-security: IP/MAC port security, SNMPv3 authentication, config watermarking, and automatic rollback.

__feature_benefit

Flexible power: Dual 12/24/48 V DC (9.6-60 V) or 24 V AC (18-30 V) inputs with redundant feeds.

__feature_benefit

Rugged build: Metal IP20 housing, 74 × 131 × 111 mm, fan-less, 0 °C … +60 °C operation; shock- and vibration-tested.

RS20-0400M2M2SDAE Rail Switch

__feature_benefit

Port mix: 2 × 100 BASE-FX MM-SC fiber uplinks + 2 × 10/100 BASE-TX RJ45 copper ports (auto-negotiation, auto-crossing).

__feature_benefit

Layer 2-Enhanced switching: QoS with four queues, IEEE 802.1Q VLANs, IGMP snooping/querier, and broadcast limiter.

__feature_benefit

Industrial redundancy: HIPER-Ring (< 0.3 s), MRP, and RSTP for high-availability topologies.

__feature_benefit

Comprehensive management: Web UI, CLI, SNMP v1/v2/v3, HiVision, and USB ACA21 for auto-configuration.

__feature_benefit

Diagnostics toolkit: LEDs, log file, LLDP, RMON, port mirroring, SFP laser diagnostics, and address-conflict detection.

__feature_benefit

Cyber-security: IP/MAC port security, SNMPv3 authentication, configuration watermarking, and automatic rollback.

__feature_benefit

Wide power options: Dual 12/24/48 V DC (9.6 – 60 V) or 24 V AC (18 – 30 V) inputs with redundant feeds.

__feature_benefit

Rugged build: Metal IP20 housing, 47 × 131 × 111 mm, fan-less, 0 °C … +60 °C operation; shock and vibration tested.

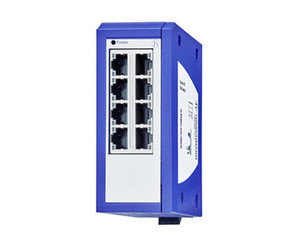

Gecko 8TX/2SFP Lite Managed Switch

__feature_benefit

Port flexibility: 8 × 10/100 Base-TX RJ45 ports plus 2 × 100/1000 Mb/s SFP uplinks for fiber or long-reach copper connections.

__feature_benefit

Lite management: Configure via HTML5 web UI, SNMP v1/v2/v3, or HiDiscovery / Industrial HiVision for easy integration.

__feature_benefit

Fast redundancy: Rapid Spanning Tree (RSTP) and MRP ring recovery ensure sub-second failover.

__feature_benefit

Built-in cybersecurity: VLAN segmentation, MAC-based port security, SSH, SSL, and authenticated SNMPv3 keep networks protected.

__feature_benefit

Industrial-protocol aware: Seamlessly supports PROFINET & EtherNet/IP traffic for automation systems.

__feature_benefit

Comprehensive diagnostics: Status LEDs, LLDP topology discovery, RMON statistics, and onboard log files speed troubleshooting.

__feature_benefit

Energy efficient: Draws < 3 W at 24 V DC and accepts a 9.6–32 V DC input range.

__feature_benefit

Rugged design: Compact IP30 metal enclosure, fan-less DIN-rail mount, –40 °C to +60 °C operating range, shock & vibration-tested.

Gecko 8TX Lite Managed Switch

__feature_benefit

Eight Fast-Ethernet ports (10/100 Mbit/s)

__feature_benefit

Redundancy with RSTP & MRP protocols

__feature_benefit

Security options: VLANs and MAC-based Port Security

__feature_benefit

Industrial-protocol awareness (PROFINET, EtherNet/IP)

__feature_benefit

Remote/on-site management via SNMP, HiDiscovery / Industrial HiVision and an HTML5 Web UI

__feature_benefit

Built-in diagnostics  (RMON, LLDP) for faster troubleshooting

__feature_benefit

< 3 W power draw on 24 V DC for energy-efficient operation

__feature_benefit

Rugged IP30 DIN-rail metal enclosure, shock- & vibration-resistant

__feature_benefit

Wide operating-temperature range –40 °C to +70 °C

Gecko 5TX Lite Managed Switch

__feature_benefit

Outstanding price-performance ratio via Lite Management concept

__feature_benefit

Quick administration through SNMP, HiDiscovery/Industrial HiVision and secure HTTPS web UI

__feature_benefit

Rapid Spanning Tree Protocol (RSTP) ensures resilient data paths

__feature_benefit

Simple installation/commissioning minimises downtime

__feature_benefit

Comprehensive diagnostics (LEDs, syslog, RMON, LLDP) speed troubleshooting

__feature_benefit

Ultra-low < 3 W power draw reduces operating costs

__feature_benefit

Compact 25 mm-wide design saves panel space

__feature_benefit

Rugged IP30 metal case tolerates shock, vibration and 0 – 60 °C operation

__feature_benefit

Wide 9.6 – 32 V DC input fits common control-cabinet supplies

__feature_benefit

Pairs seamlessly with Belden industrial Ethernet cabling

Gecko 4TX Lite Managed Switch

__feature_benefit

Exceptional value: Lite-Managed design delivers rich functionality at a cost-effective price point.

__feature_benefit

Simplified administration: Built-in SNMP, HiDiscovery / Industrial HiVision, and an intuitive web GUI make setup and monitoring effortless.

__feature_benefit

Reliable connectivity: Rapid Spanning Tree Protocol (RSTP) keeps your network available and resilient.

__feature_benefit

Quick commissioning: Tool-free DIN-rail mounting and auto-configuration speed installation and boost uptime.

__feature_benefit

Fast troubleshooting: Comprehensive diagnostics pinpoint issues instantly to keep production running smoothly.

__feature_benefit

Lower operating costs: Ultra-low power draw (approx. 2.35 W) reduces energy consumption and TCO.

__feature_benefit

Space-saving footprint: Slim 25 mm housing frees valuable cabinet real estate.

__feature_benefit

Rugged versatility: IP30 metal enclosure withstands shock, vibration, and 0 – 60 °C temperatures for flexible deployment.

__feature_benefit

Control-cabinet ready: Runs on standard 24 V DC power input.

__feature_benefit

Optimized cabling: Designed to pair seamlessly with Belden industrial Ethernet cables.

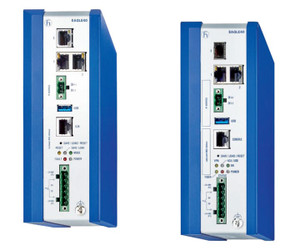

EAGLE40-5TX/2SFP-EEC-IN

__feature_benefit

Up to 7 GbE ports, 5 Gbps throughput: EAGLE40‑03 (3 ports) and EAGLE40‑07 (7 ports) models deliver line‑rate 1 Gb/s links and high aggregate bandwidth for demanding OT networks.

__feature_benefit

Built‑in SPI / DPI + Firewall Learning Mode: HiSecOS combines stateful and deep‑packet inspection with an auto‑rule generator to harden security without expert‑level effort.

__feature_benefit

Secure remote access & resilient routing: IPSec VPN, OSPF dynamic routing and VRRP gateway redundancy keep critical assets reachable even during link failures.

__feature_benefit

User‑friendly HTML5 GUI & multi‑tool management: Configure locally or centrally through Web‑UI, Industrial HiVision, Tripwire Enterprise/Log Center and CLI.

__feature_benefit

Ruggedized for harsh industry: –40 °C…+70 °C range, convection‑cooled metal housing, ISA 12.12 C1D2 / IEC 61850‑3 approvals and IEC 62443 alignment enable secure operation in substations, oil & gas, and process plants.
